>> Descriptions:

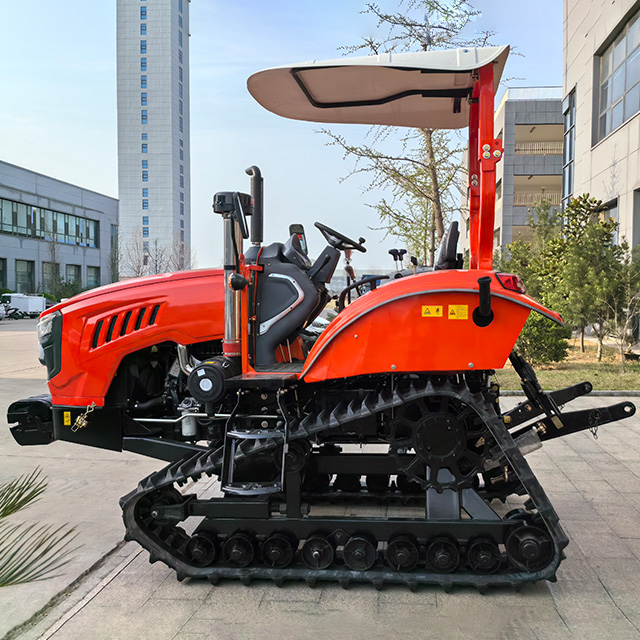

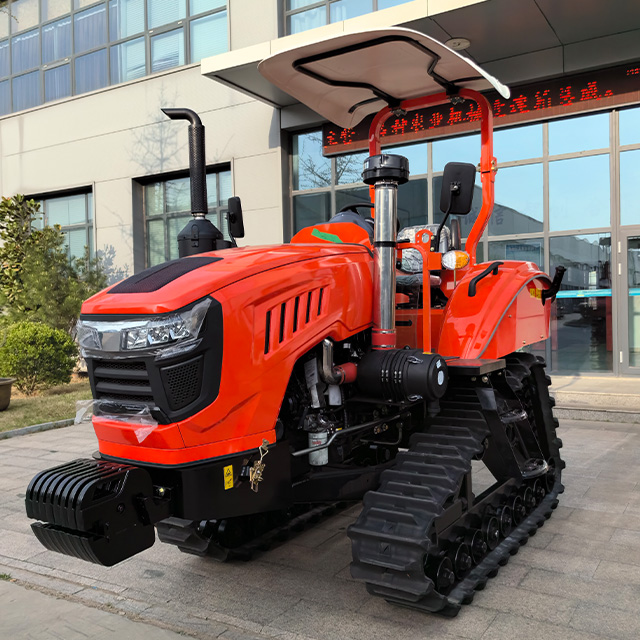

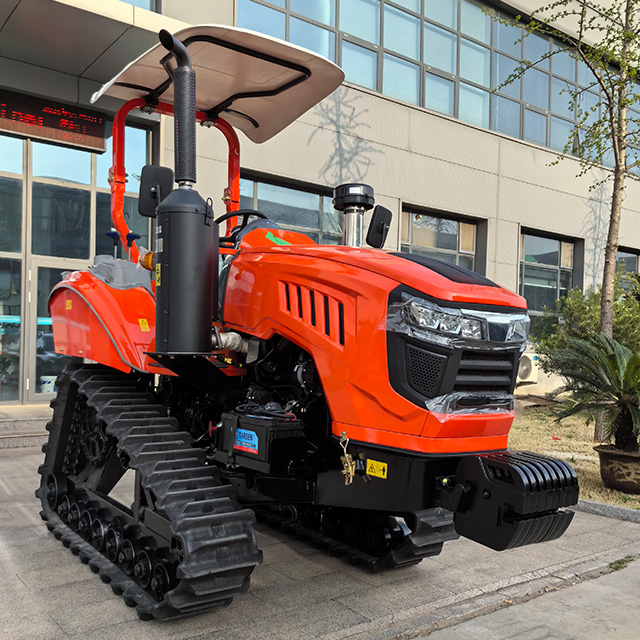

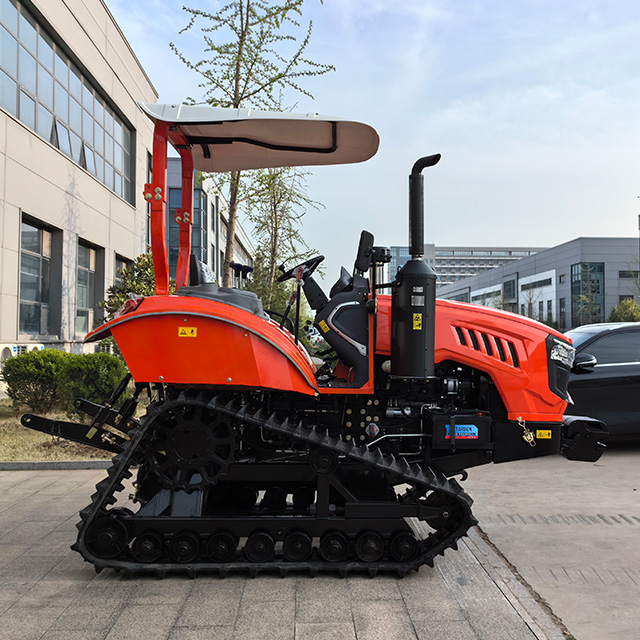

This crawler tractor is built with triangle track design. It is adopted differential steering to have 360° in-situ turn to make it more flexible working in the muddy and paddy land.
The control lever is within easy reach to make the job easier and driving more comfortable.
Flat floor increases the working space enough wide and work easier.
>> Features:
Differential steering to make tractor 360° in-situ turn
High ground clearance to make the tractor easy get over in the field.

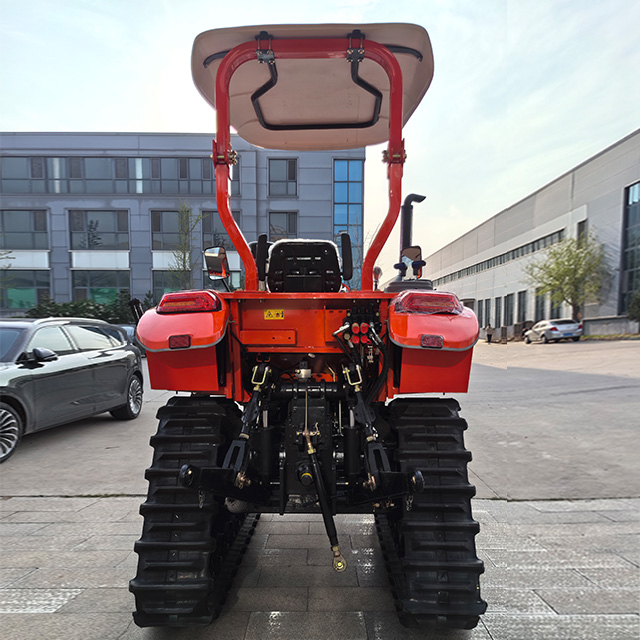

Three point linkage to attach to diferent attachment like rotary tiller, harrow, ditcher etc and front can be attahced the front loader, front blade etc.
>> Technical Data
Model NO. | LY1002 |
Tractor power | 100hp |
General Data | |
Type | Crawler tractor |
Overall dimensions | 4100×1850×2980mm( to top of Rop) |
wheel base | 1400mm |
track tread | 1300mm |
track tread | 1300mm |
min ground clearance | 560(bottom of beam) |
Min service quality | 2945Kgs |
front ballast weight | 120Kgs |
Transmission box | 12F+12R |
Main gear shift | 4 |
Auxiliary gear shift | 3×(1+1) |
Max theoretical speed | 17.24km/h |
The theoretical speed of forward speed | L:1. 22,1.80,2.92,3.84km/h |
H:5.50,8.08,13.13,17.24km/h | |
Engine Data | |
Type | Inline, four stroke, water cooled |
Manufacturer | YTO |
Intake method | turbocharged |
Cylinder NO. | 4 |
Rated power | 73.6kW |
Engine speed | 2300r/min |
Track material | rubber |
track width | 400mm |
Working Part | |
Suspension type | rear positioned three point linkage catergory II |
Group No. of hydraulic valve | 2 |
PTO speed | 540/760 r/min |
