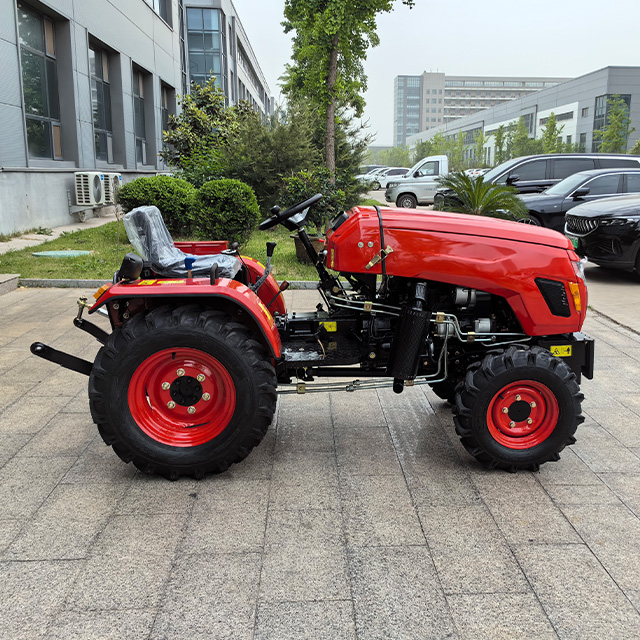

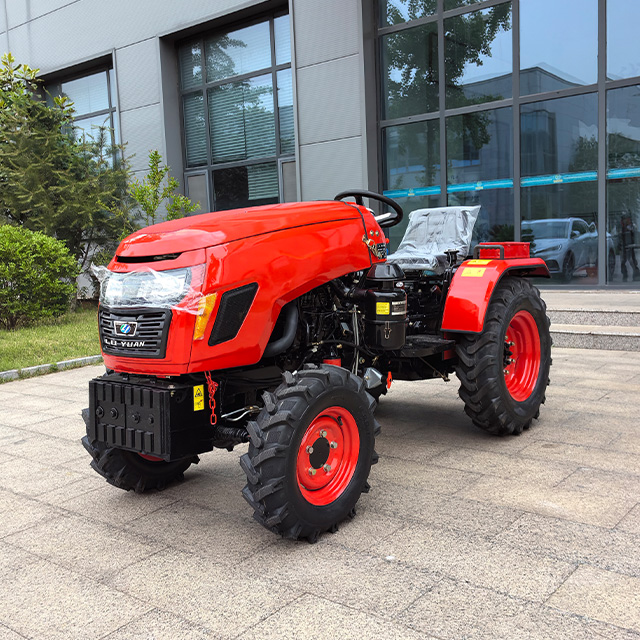

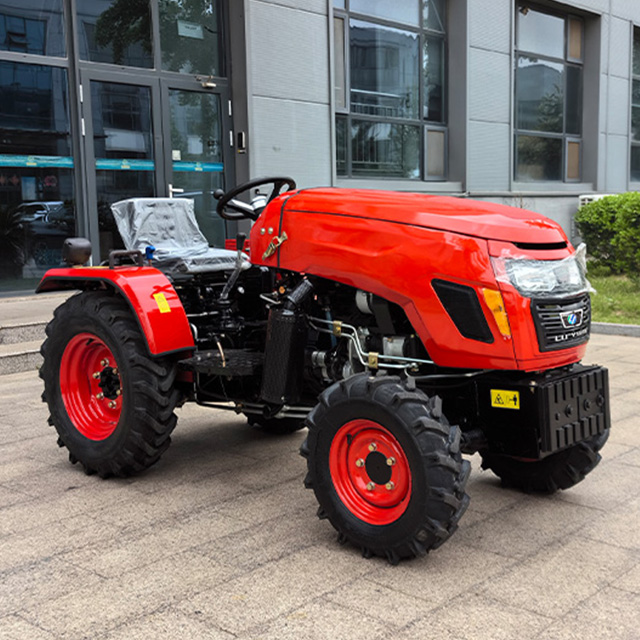

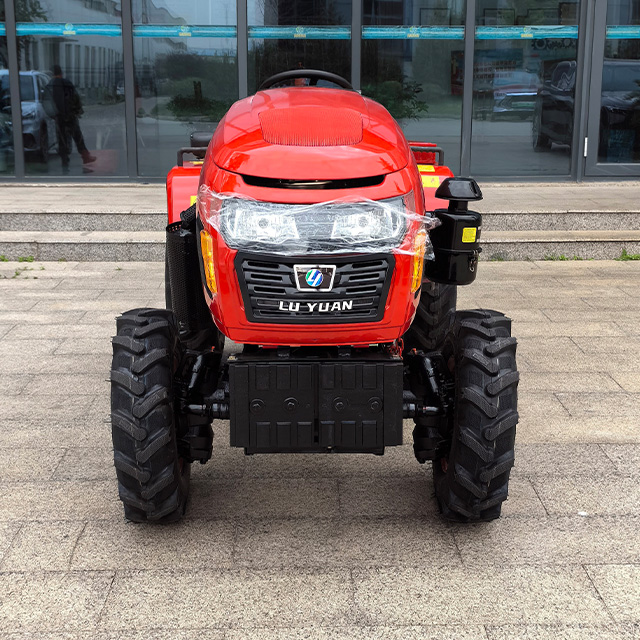

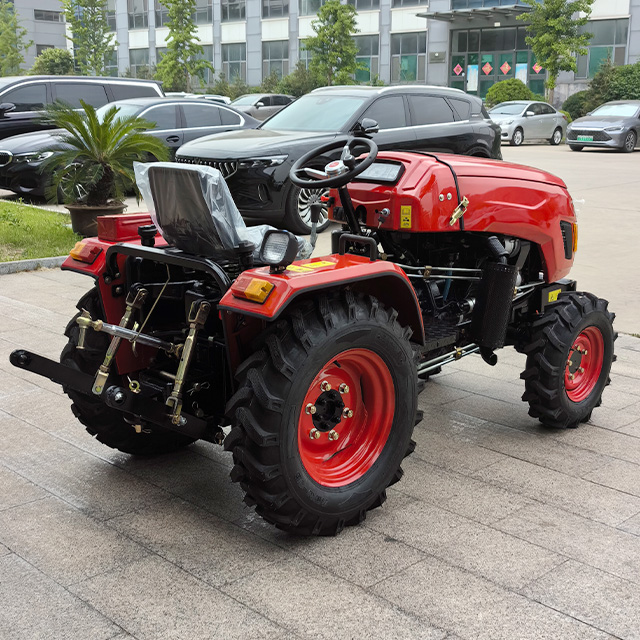

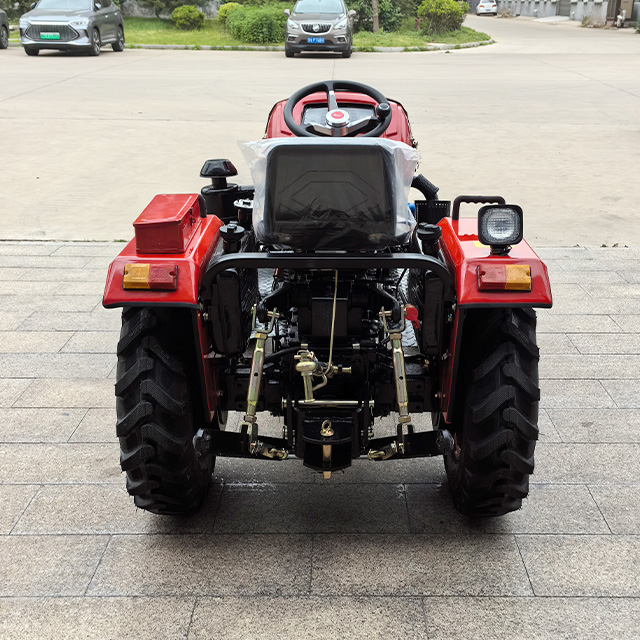

Mini Tractor TY Series 25hp


Euro II Laidong diesel Engine
6F+1R transmission
Mini structure with super flexiblity working

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Mini Tractor TY Series 25hp
Product Description


>> Descriptions:

  • This tractor is built with compact structure, small turning radius.

  • The total width can be adjusted to be1000mm for mini size land.

  • Super power China Emission II diesel engine with low maintenance cost.


>> Features:

  • 2WD or 4WD

  • Multi-function for cultivating, tilling, mowering, loading etc.

  • Optionally equipped with air brakes and multi-way valves to meet the matching requirements of more agricultural machinery.


>> Technical Data

Horsepower25HP
Model NO.LY250LY254
Type2WD4WD
Overall dimensionsL*W*H to steering wheel(mm)2300*1160*12002400*1200*1300
wheel treadfront wheel（mm)920960
rear wheel（mm)960-1300960-1300
wheel base（mm)15501630
Min ground clearance（mm)310450
Turning radius (m)2.32.4
Structure mass (kg)850±301000±30
EngineModelKM385KM385
Typethree cylinders,vertical
Rated power（kw)18.418.4
Rotating speed（r/min)23502350
Fuelfuelfuel
Tirefront Tire450-126.0-12
rear Tire7.6-167.5-16
Clutchsingle disc, dry type
Steeringhydraulic steering
Transmission Box6+16+1
Suspension typerear positioned three point linkage catergory 0
PTOType and speed(r/min)Non-independent 540r/min
Spline size (mm)Rear positioned: 6 splines
