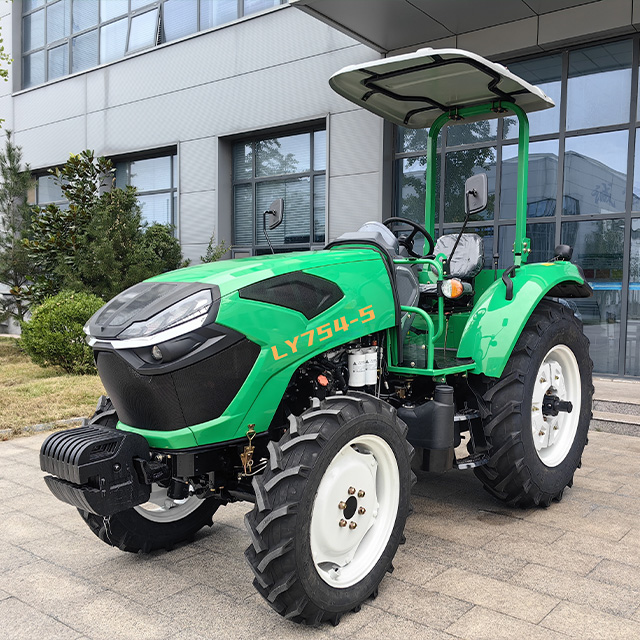

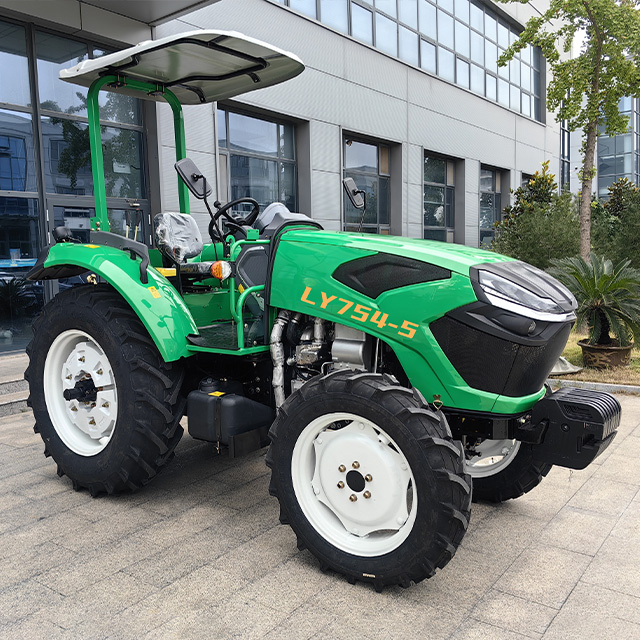

| Model NO. | LY754-5 |
| General Data |
| Tractor Power | 75hp |
| Chassis Type | TB chassis |
| Drive method | 4WD |
| Overall dimension（L*W*H）mm | 4050×1680×2630 |
| Wheel tread (mm) | front 1300/ rear 1310 adjustable |
| Wheel base (mm) | 2040 |
| Min Ground clearance (mm) | 380 |
| Min service weight (kgs) | 2825 |

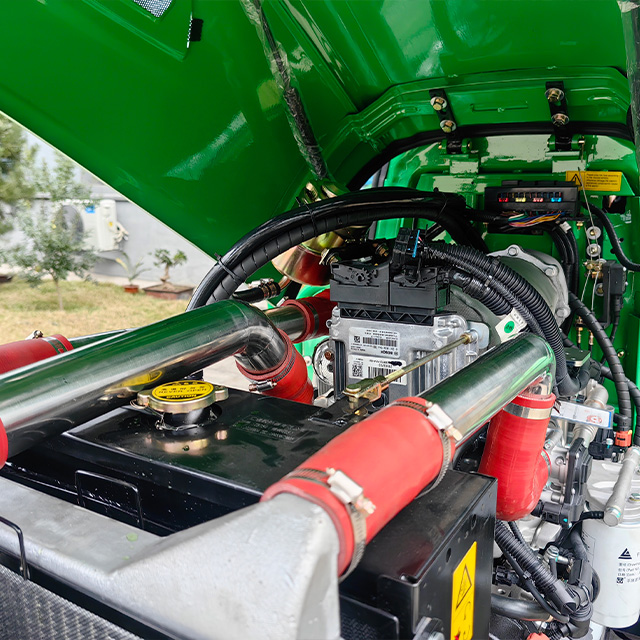

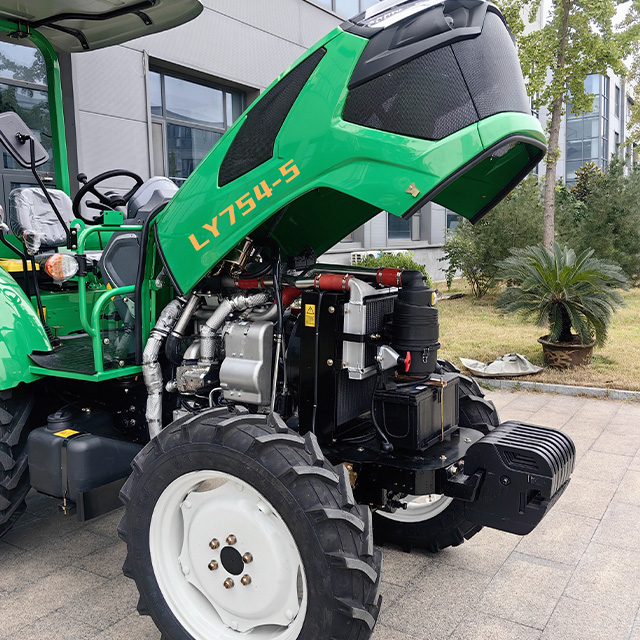

| Diese engine |
| Diese engine | XINCHAI EURO V 3E22RT51P754 |
| Type | inline, direct injection, water cooled |
| Intake method | turbocharged and air intercooled |
| Engine power | 55.8kW/2400rpm |
| Cylinder NO.-BoreX stroke | 4-94*107mm |
| Max torque (N·m/r/min) | 280/1600-1800 |
| Fuel | diesel |
| Clutch | dry type, dual action |
| Transmission shift | 12F+12R |
| Working Part |

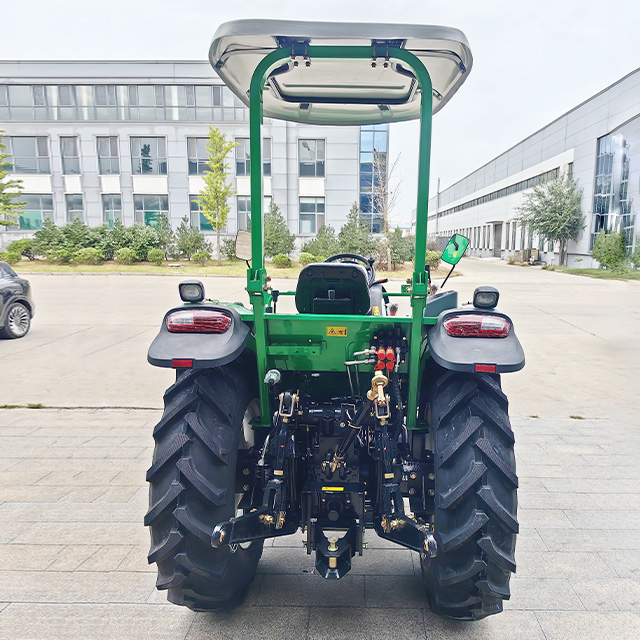

| Suspension type | three point linkage, CAT II |
| Hydraulic output | two group of hydraulic; Options: 3 groups |
| PTO speed | 540/1000rpm |
| PTO splines | 6 |
| Max traction power | ≥16.5kN |
| Max lifting power | ≥12.4kN |
| Travelling system |
| Tire size | Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30;
radial tire 280/85R20,380/85R30 |
| Theorectical speed | Forward: 2.46-32.73km/h
Reverse: 2.15-28.69km/h |
