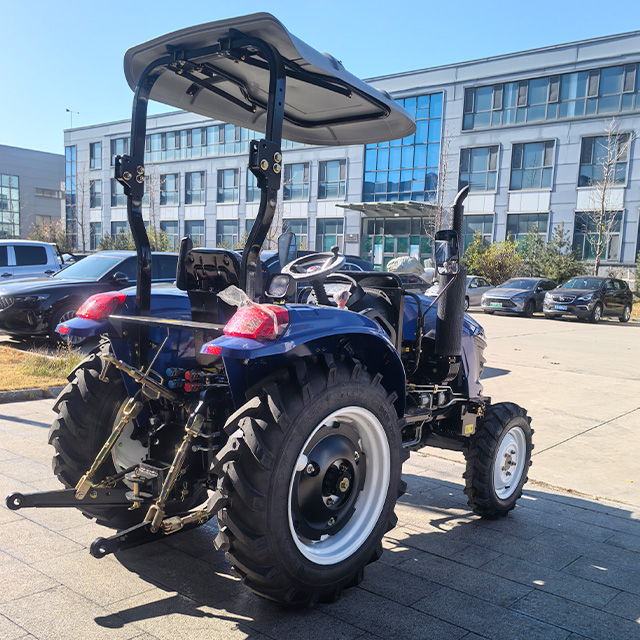

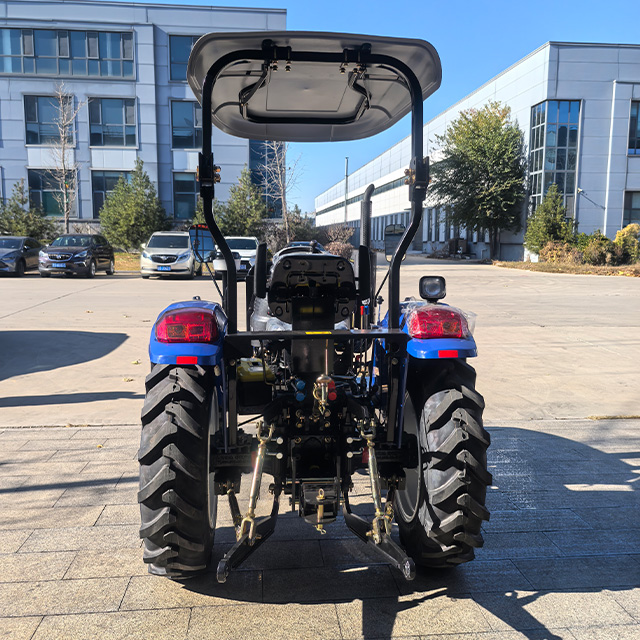

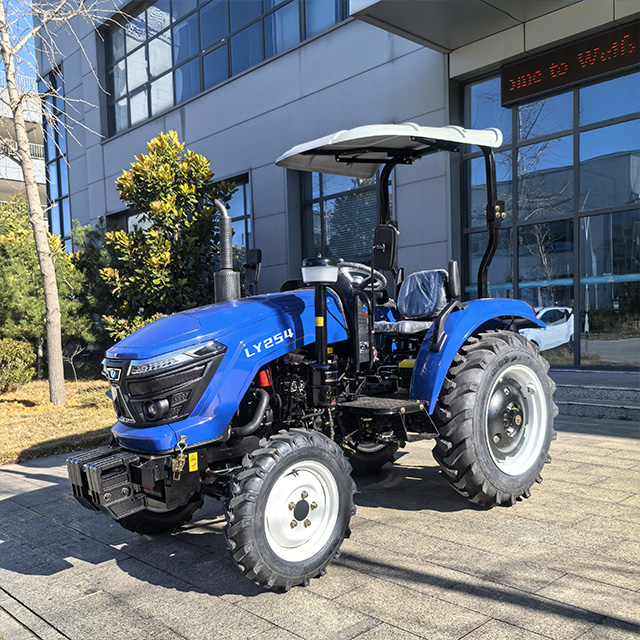

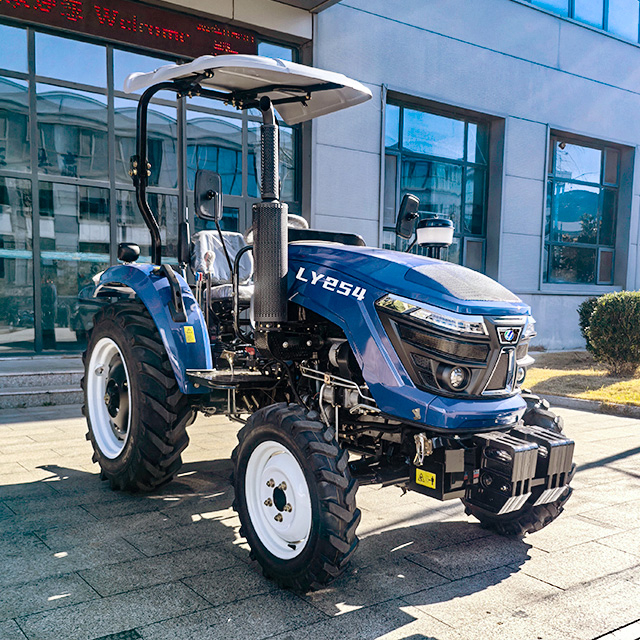

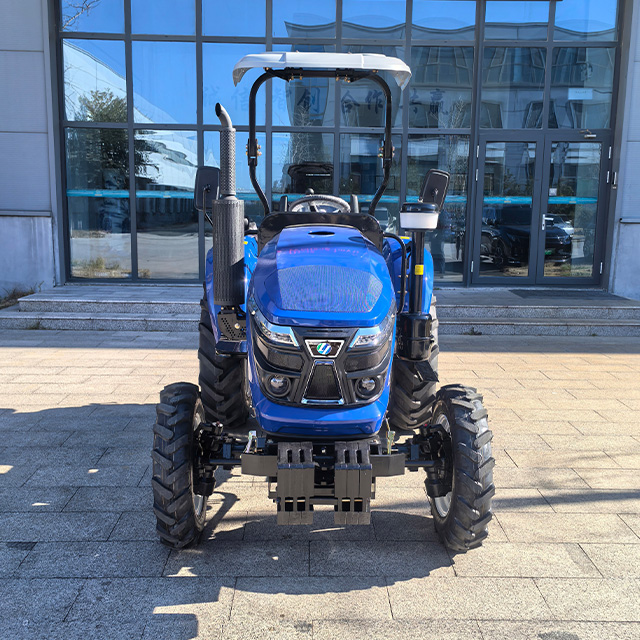

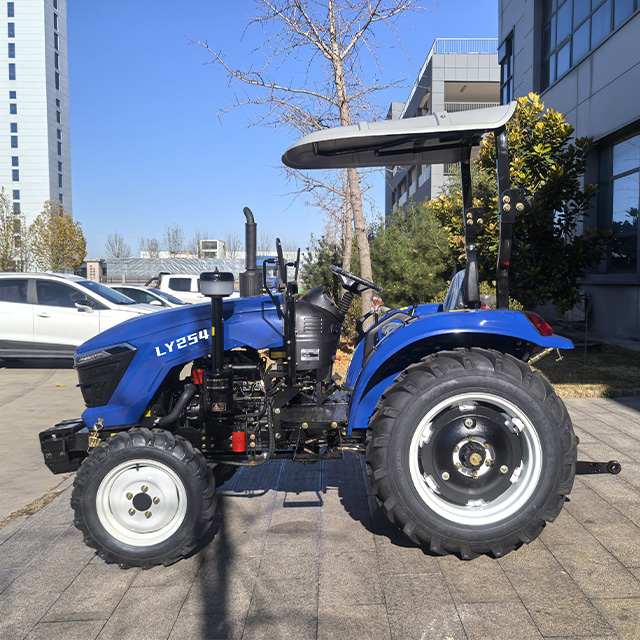

Utility Tractor TY Chassis 25hp


Powerful diesel Engine, Tractor Power: 18.4kW/25hp
8F+2R transmission; 8F+8R transmission optional
4WD, 2WD optional
Open type, cabin optional


Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Utility Tractor TY Chassis 25hp
Product Description


>> Descriptions:

  • This 25hp tractors is equipped with 8F+2R gear box,  Laidong 3 cylinder diesel engine, 6.5-16/11.2-24 tire, three point linkage.


>> Features:

  • 6-16/9.5-25; 7.5-16/11.2-28 optional

  • 8F+2R transmission

  • A variety of tractor attachments, disc harrow, plough, rotary tiller, ridger,mower, front loader, backhoe, mower, trailer, auger, baler


>> Technical Data

Model NO.LY254
General Data
Tractor power25hp
Drive Type4X4
Chassis typeTY
Min service weight1360Kgs
Minimum ground clearance340mm
Engine data
Diesel EngineLaidong KM385BT,
China Emission II
Engine power18.4kW
Wheel Base1680mm
Overall dimension（L*W*H）3250*1400*2000mm
Hydraulic system/working part
Suspension typethree point linkage CATI
Hydraulic outputone group /two groups  are optional
PTO speed540/1000
PTO spline number6
Max Traction Power≥7KN
Max lifting force≥5KN
Travelling system
Clutchsingle stage clutch
Steeringhydraulic steering
Gearshift8F+2R
Theoretical SpeedForward:2.06-31.30
Reverse:2.71-12.52
Tires size6.0-16/9.5-24; 6.5-16/11.2-24


Product Description

Related Products

Utility Tractor TB Series LY1004
Utility Tractor TB Series LY1004
Utility Tractor TB Series LY904
Utility Tractor TB Series LY904
Utility Tractor TB Series LY804
Utility Tractor TB Series LY804
Utility Tractor TB Series LY604
Utility Tractor TB Series LY604
Utility Tractor Euro V 75hp
Utility Tractor TB Series LY704
Utility Tractor Euro V 75hp
Utility Tractor Euro V 75hp
Utility Tractor Euro V 50hp
Utility Tractor Euro V 50hp

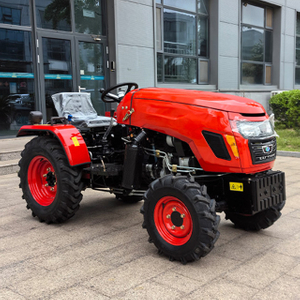

Mini Tractor TY Series 25hp
