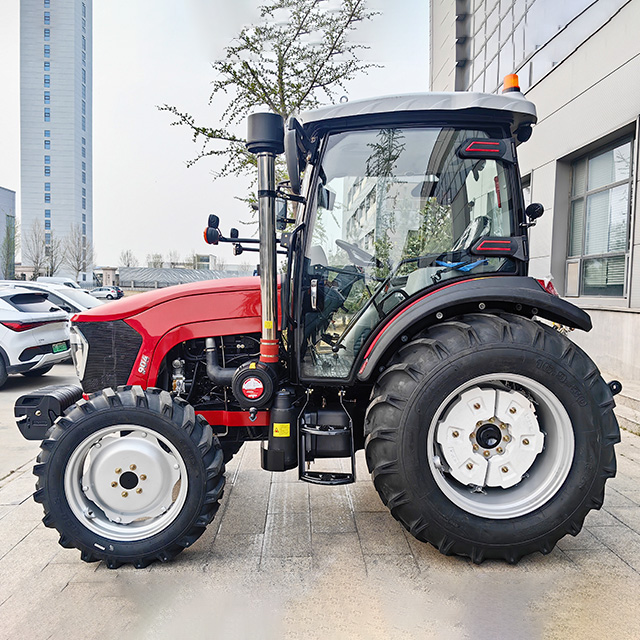

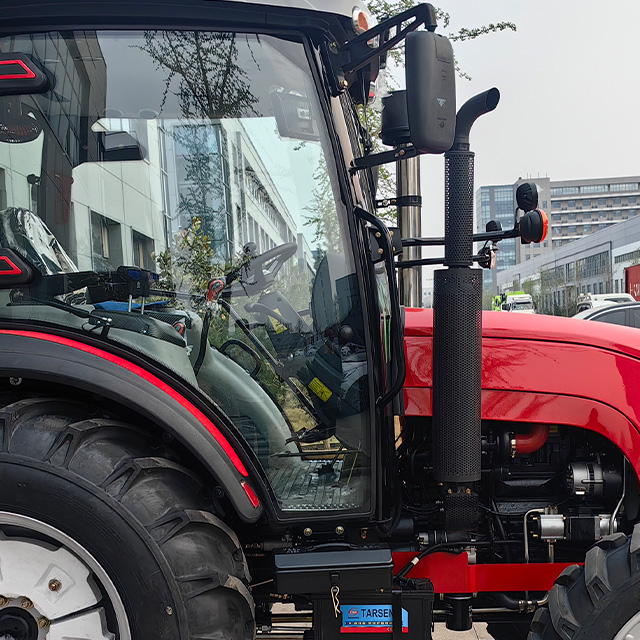

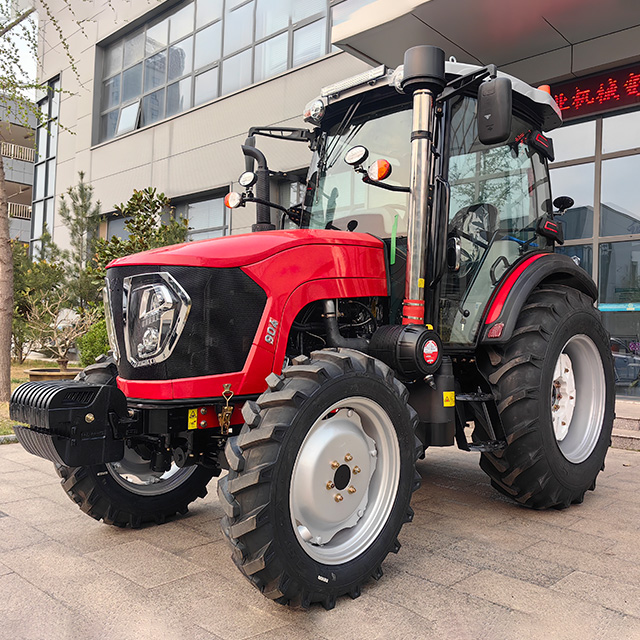

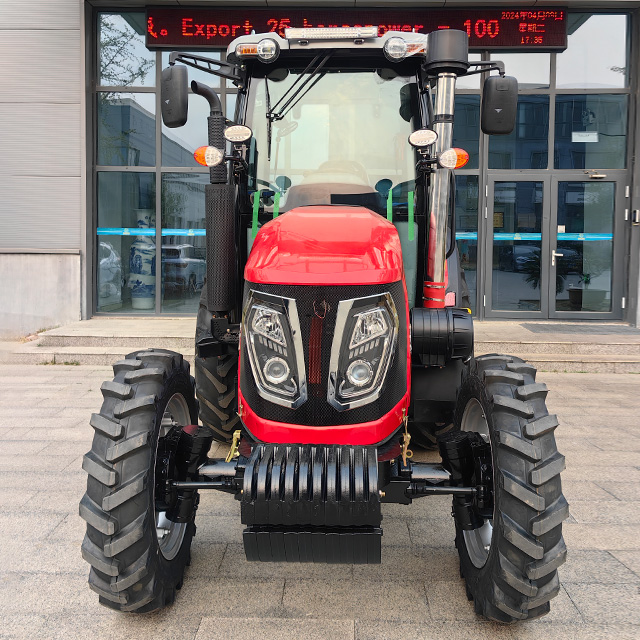

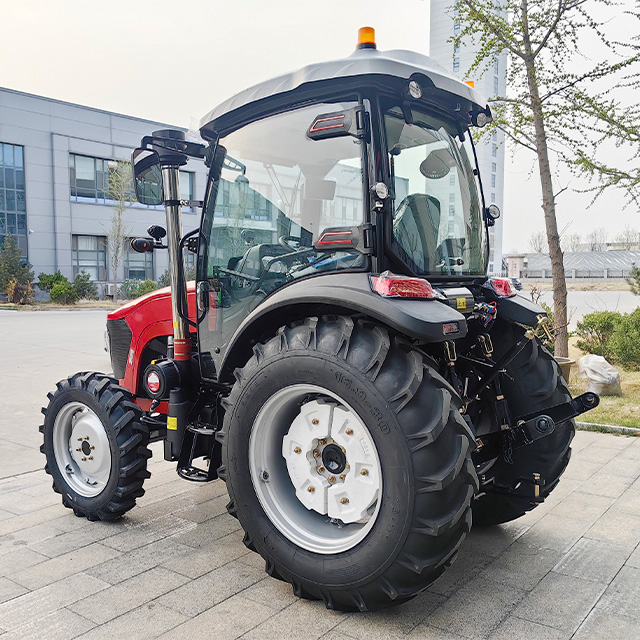

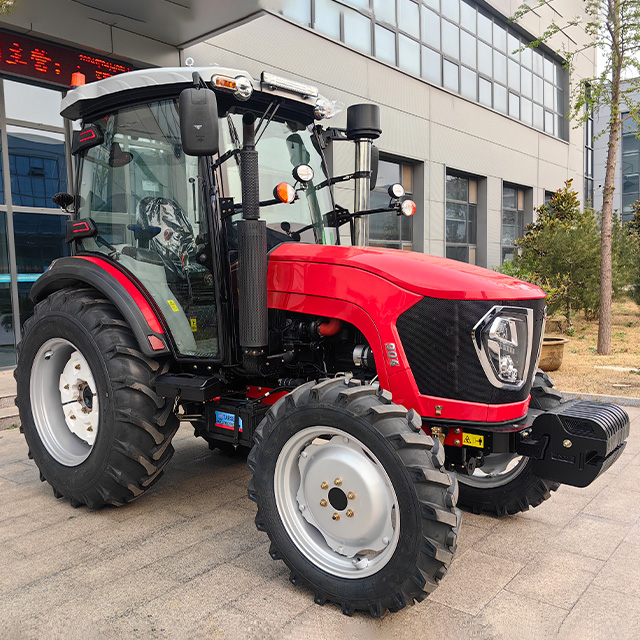

| Model NO. | LY1004 |
| General Data |
| Tractor Power | 100hp |
| Chassis Type | TB chassis |
| Drive method | 4WD |
| Overall dimension（L*W*H）mm | 4050×1830×2660 |
| Wheel tread (mm) | front 1050,1150, 1250; rear1000~1300 |
| Wheel base (mm) | 2010 |
| Min Ground clearance (mm) | 390 |
| Min service weight (kgs) | 2825 |
| Engine |
| Diese engine | Yangdong 4110. China Emission Stage II, 4.087L |
| Type | inline, direct injection, water cooled |
| Intake method | turbocharged |
| Engine power | 66.15kW/2400rpm |
| Fuel | diesel |
| Hydraulic system/working Part |
| Suspension type | three point linkage, CAT II |
| Hydraulic output | dry type, dual stage |
| Max traction power | ≥24.5kN |
| Max lifting power | ≥16kN |
| Rear PTO speed | 540/1000rpm |
| PTO splines | 6 |
| Travelling sysem |
| Steering | hydraulic steering |
| Transsmission | gearshift 12F+12R |
| Clutch | dry type, dual stage |
| Brake | oil-immersed |
| Tire size | Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30 |
| Theorectical speed | Forward: 2.46-32.73km/h
Reverse: 2.15-28.69km/h |
