>> Descriptions:
This Euro V 50hp tractors is built with durablity,stability and efficiency. It is equipped with 8F+8R with shuttle with different speed to match diffierent work speed request.

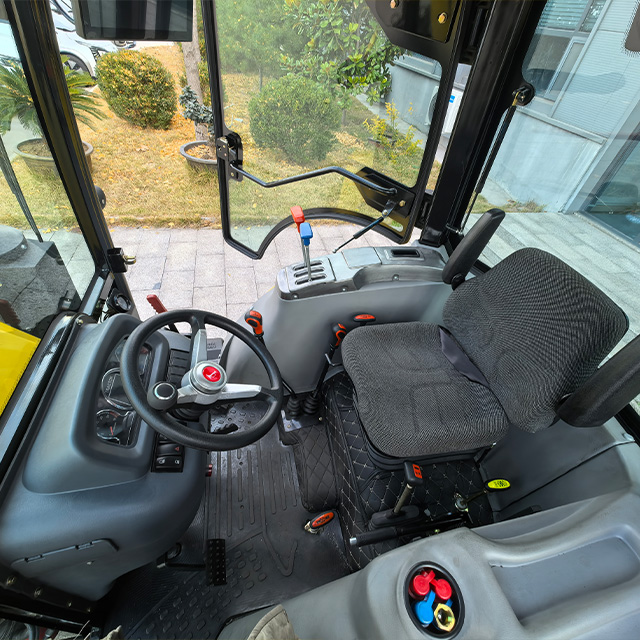

The control is within easy touch to make the job easier and driving more comfortable.
Flat floor increases the working space enough wide and work easier.
>> Features:
2WD or 4WD, radial tire 280/70R16, 360/70R24 are selected.
8F+8R transmission with shuttle shift.
Used for cultivating, tilling, mowering, planting, harvesting, loading, backhoe, baling,transporting etc.
With radial tire to enlarge the ground contact.
>> Technical Data
Model NO. | LY504-5 |
General Data | |
Tractor Power | 50hp |
Drive method | 4WD |
Overall dimension(L*W*H)mm | 3340*1520*2600mm |
Wheel tread (mm) | 1180-1200 adjustable |
Wheel base (mm) | 1880 |
Min Ground clearance (mm) | 320 |
Min service weight (kgs) | 1980 |

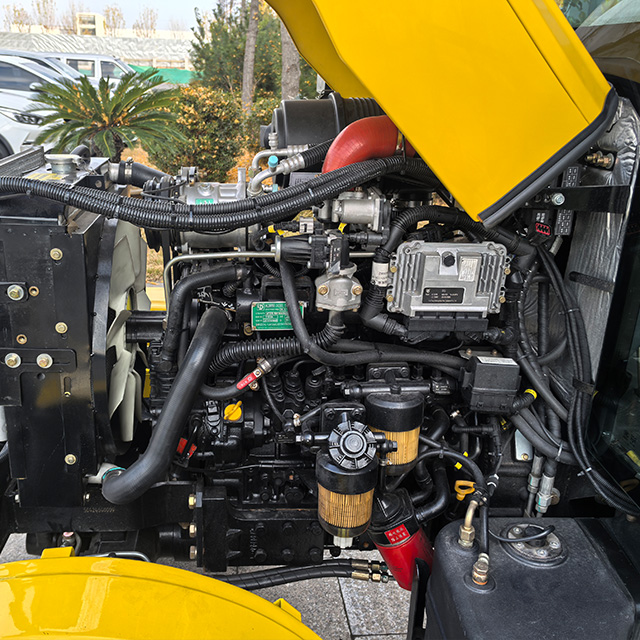

Diese engine | |
Diese engine | Laidong EURO 5 |
Type | inline, direct injection, water cooled |
Intake method | NA |
Engine power | 36.8kW/2400rpm |
Cylinder NO.-BoreX stroke | 4-95*100 |
Displacement (L) | 2.836L |
Fuel | diesel |
Clutch | dry type, dual action |
Transmission shift | 8F+8R |
Working Part | |
Suspension type | three point linkage, CAT I |
Hydraulic output | two group of hydraulic; Options: 3 groups |
PTO speed | 540/1000rpm |
PTO splines | 6 |
Max traction power | ≥15.3kN |
Max lifting power | ≥9kN |
Travelling Part | |
Tire size | 280/70R16, 360/70R24 |
Theorectical speed | Forward:2.06-31.30; Reverse:2.71-12.52 |
